Making Lego WeDo computer controlled motorcar from scratch

Lego sets generally come with complete easy to follow building instructions. However, it is much better if children can build new models from scratch without plans. Making a Lego Education Wedo car controlled from the computer with Lego WeDo software or MIT Scratch software is quite easy and hopefully the photos below showing how such a car can be built step by step to build a basic car base which can be added upon to customize can encourage them to create new models from scratch on their own:

Update: for a better option for building car chassis, refer to Building a car chassis from scratch part ii

Step 1: Base plate: Base plate to mount WeDo motor


Base plate to mount WeDo motor
Step 1: Base plate to mount WeDo motor











Step 2: Fix WeDo motor on base plate with drive shaft and crown gear

Fix WeDo motor on base plate with drive shaft and crown gear
Step 2: Fix WeDo motor on base plate with drive shaft and crown gear

Step 3: Add beama, drive axles and gear


Step 3: Add beama, drive axles and gear

Step 4: Add wheels onto axles

Add wheels onto axles
Step 4: Add wheels onto axles

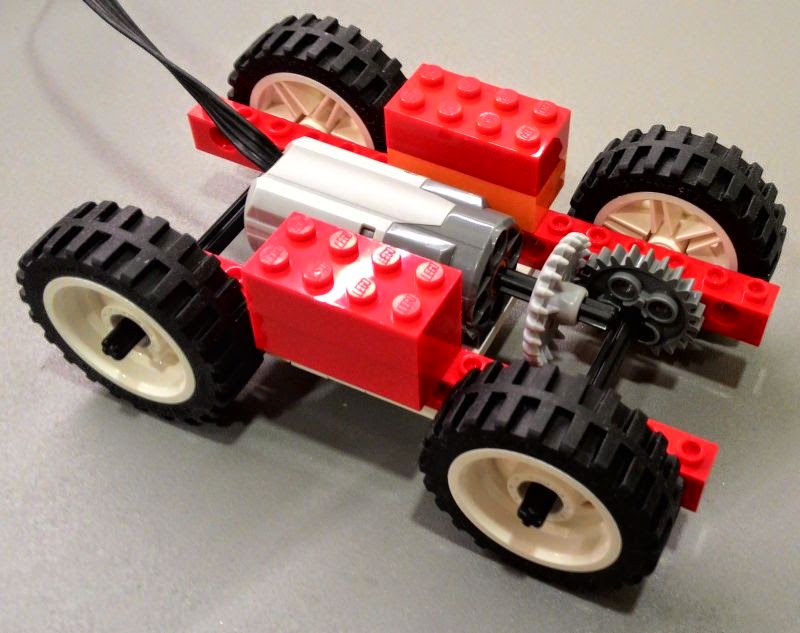

Step 5: Add bricks to raise level

Add bricks to raise level
Step 5: Add bricks to raise level


Step 6: Add driver

Add driver
Step 6: Add driver

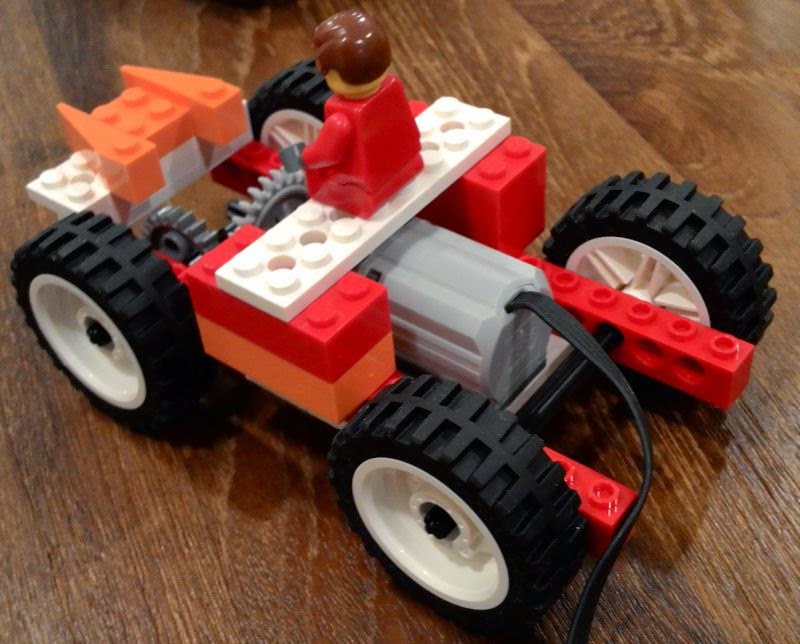

Step 7: This final step you can easily add whatever you want to personalize the car, maybe even add the boot in addition to the bonnet

Add bonnet or other decorations
Step 7: Add bonnet or other decorations
